STEREOMIKROSKOOPIT

Nikon_logo

Nikon SMZ-sarja

SMZ-zoomstereomikroskoopeilla on hallussaan zoomalueen maailmanennätys; 25:1 (malli SMZ25).

Lisäksi Nikon-mikroskoopin käyttäjä saa nauttia Nikonin ylivoimaisen laadukkaasta optiikasta ja mallien modulaarisuuden tuomasta monipuolisuudesta.

Tuotelinja tarjoaa laajan valikoiman vaihtoehtoja erilaisille mikroskoopin käyttökohteille.

Valinnanvaraa lisää mikroskooppien modulaarinen rakenne, jonka ansiosta mikroskooppikokoonpanoon voidaan valita käyttösovellusta parhaiten palvelevat osat, esim. jalustaksi, tubukseksi, okulaareiksi, objektiiveiksi ja valonlähteeksi.

SMZ25-, SMZ18-, SMZ1270-, SMZ1270i-, SMZ800N- ja SMZ745T -malleihin voidaan liittää mikroskooppikamera. Nikon-mikroskooppikameroilla dokumentoit havaintosi laadukkaiksi kuviksi. Kuvien analysointiin ja mittauksiin löydät tehokkaat ja monipuoliset työkalut NIS-Elements-ohjelmistosta.

Nikon SMZ-sarjan mikroskoopit:

Nikon SMZ25-specifications Nikon SMZ18-specifications Nikon SMZ1270-specifications Nikon SMZ800N-specifications Nikon SMZ745-specifications

Kysy meiltä lisää, autamme sinua valitsemaan optimoidun kokoonpanon juuri sinun sovelluksellesi. Tarjoamme käyttöösi vuosien kokemuksemme ja autamme optimoimaan kokoonpanon. Meiltä saat luonnollisesti myös kaikki Nikon-mikroskooppien lisävarusteet ja käyttäjätuen sekä huoltopalvelut.

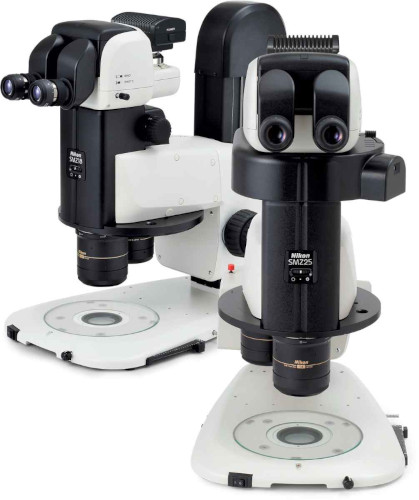

Nikon SMZ25/SMZ18

Nikon_logo

Nikon SMZ25 stereomikroskooppi

Nikon’s perfect zoom system, the world’s highest zoom ratio (25:1), matches the high numerical aperture values of the left and right optical axes simultaneously.

SMZ25 stereomicroscope  provides world's highest zoom range

The remarkable zoom ratio is achieved by an opto-mechanical mechanism that continuously changes the distance between the two optical axes during the zooming process.

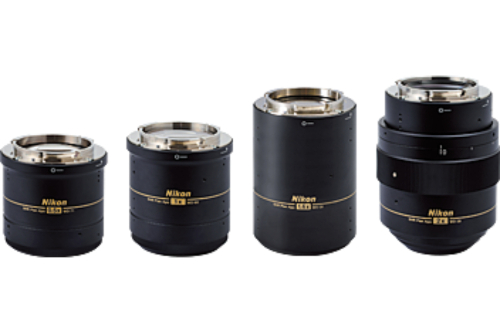

Nikon’s innovative and parfocal SHR Plan Apo objective lens series is capable of the highest resolution of 1100LP/mm (SHR Plan Apo 2x at maximum zoom).

Nikon SHR Plan APO series for SMZ25 / 18 stereomicroscopes

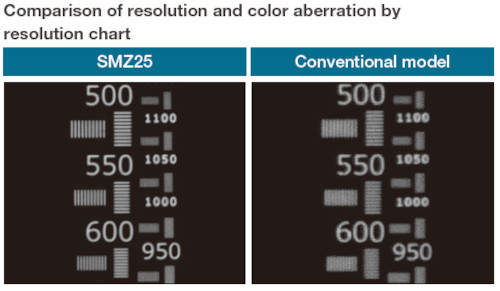

Comparison of resolution and color aberration by resolution chart:

Comparison of resolution conventional and SHR Plan APO

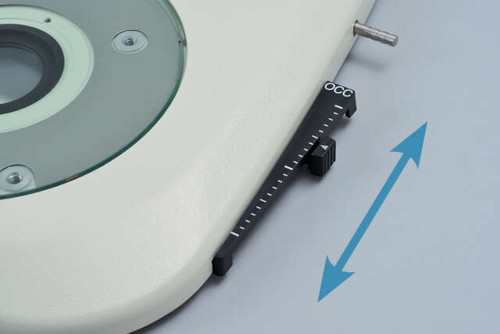

Easy-to-use OCC illumination; The new LED DIA Base with a built-in OCC illuminator generates minimal heat, consumes little power and is long-life. This illuminator can enhance the contrast of uneven surfaces. The OCC illuminator can be controlled using a slide lever. Thanks to scales on the slide lever, the user can save and reproduce desired illumination levels. In addition, an OCC plate can be inserted into the illumination unit from the front and rear sides, so images with different shadow direction can be observed.

Easy-to-use OCC illumination  for SMZ25 / SMZ 18 stereomicroscopes

The acronym OCC stands for oblique coherent contrast (OCC), which is a form of oblique lighting method developed by Nikon. Compared to conventional diascopic illumination that illuminates directly from below, OCC illumination applies coherent light to samples in a diagonal direction, giving contrast to colorless and transparent sample structures.

The P2-RNI2 intelligent objective lens nosepiece provides an additional on-axis lens position so that a plan digital image may be acquired of a challenging sample using the true central axis of an objective lens. Easily switch between stereo position and mono position (on-axis view) by simply moving the objective lens.

Comparison of on-axis image and stereoscopic image

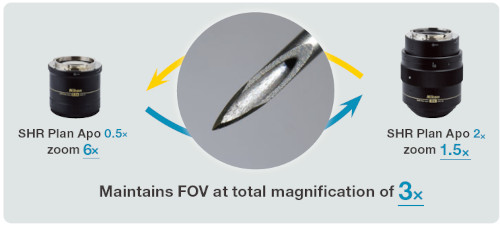

The ALZ function automatically readjusts and replicates the magnification factor when changing objective lens on the nosepiece, maintaining the field of view (SMZ25). This enables an extended magnification range far beyond the standard zoom ratio.

Nikon SMZ25 ALZ (Auto Link Zoom)

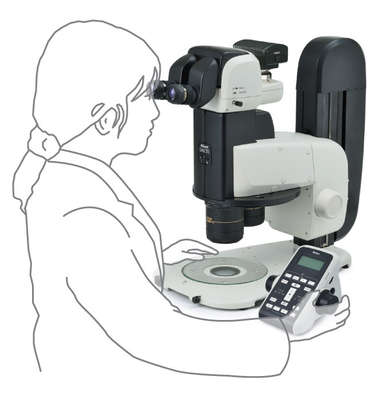

User-friendly remote controller (SMZ25) provides easy access to zoom and focus controls and is designed for both right and left hand use. The remote controller contains an LCD monitor with an adjustable backlight which provides information regarding the zoom factor, objective lens, filter cube, and LED DIA brightness at a glance.

User Friendly  Remote Control SMZ25 stereomicroscope

A wide range of digital imaging capabilities with the Nikon Digital Sight camera series and NIS-Elements imaging software

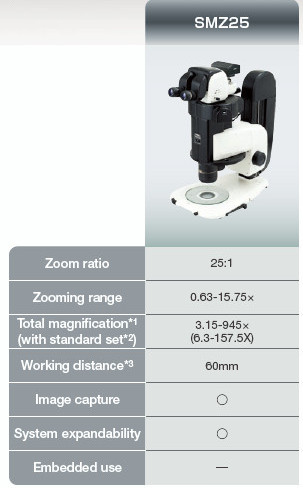

Specifications, SMZ25:

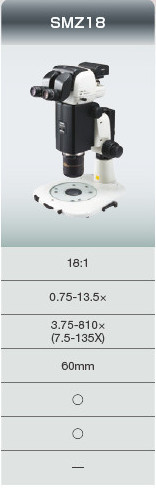

Specifications, SMZ18:

Lue tästä linkistä case-esimerkki; Nikon SMZ18-stereomikroskooppi mineraalitutkimuksessa:

Nikon SMZ Case Study

Nikon-stereomikroskooppien esite:

Nikon stereo microscopes brochure

Ota yhteyttä meihin lisätietoja varten

osio vaihtuu

Nikon SMZ1270/SMZ1270i

Nikon_logo

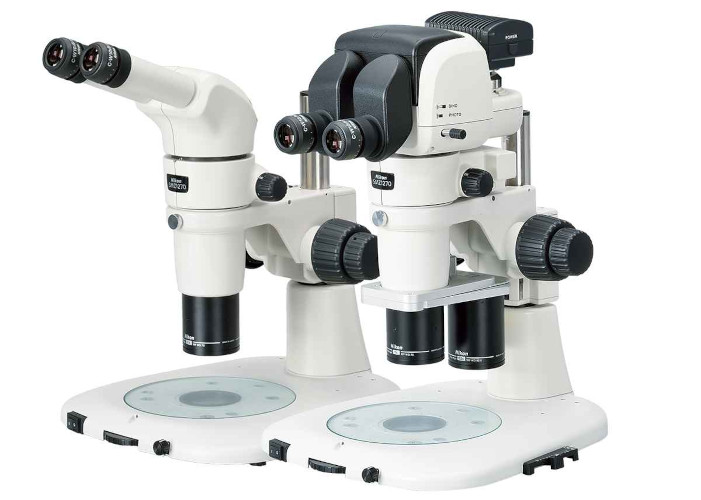

Nikon SMZ1270i stereomikroskooppi

With a best-in-class zoom ratio of 12.7x (0.63x-8x), the SMZ1270 covers an even greater magnification range than previous models. At the lowest magnification, the actual field of view will go up to 35mm (when 1x objective and 10x eyepieces are used (excluding Coaxial EPI illumination))

Nikon SMZ1270 best in class zoom ratio

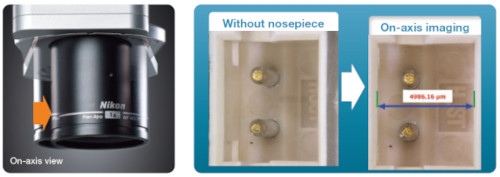

The double nosepiece allows for seamless observation in a wide range of magnifications. In addition, changing objectives has never been easier. By changing the nosepiece from stereo-position (stereo view) to mono-position (on-axis view), you can easily acquire images suited for measuring and processing.

Nikon SMZ1270 double nosepiece

In combination with Nikon DS microscope camera and NIS-Elements, the SMZ1270i can detect zoom magnification data. In addition, with the Intelligent Nosepiece P-RNI2 attached, data related to the objective in use is also detected. Calibration data is automatically altered, following changes of magnification, to display the appropriate scale and measurement results on the images.

Nikon SMZ1270i Intelligent function for status readout

Specifications, SMZ1270/SMZ1270i:

Nikon-stereomikroskooppien esite:

Nikon stereo microscopes brochure

Ota yhteyttä meihin lisätietoja varten

osio vaihtuu

Nikon SMZ800N

Nikon_logo

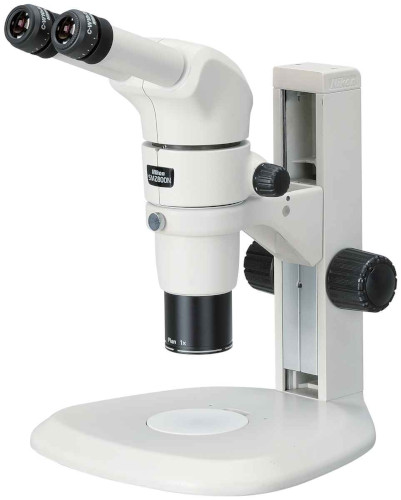

Nikon SMZ800N stereomikroskooppi

The SMZ800N comes with a 1-8X zooming range, with higher magnification than conventional models and enables high-resolution observation.

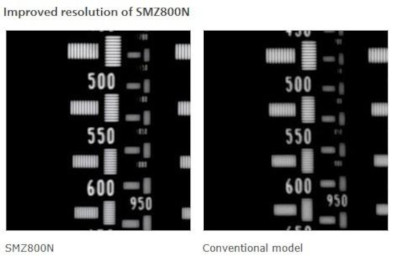

Nikon SMZ800N improved resolution

There are several eyepiece tubes to fit various configurations, from a simple setup to a system with some intermediate modules or digital cameras. With an ergonomic eyepiece tube, the observation angle can be adjusted from 0-30 degrees, allowing for comfortable observation postures even if combined with intermediate modules like illuminators or teaching heads. Furthermore, the Plain Stands and Diascopic LED Stands adapted a slim design for easier operation and exchange of specimens and samples.

Nikon SMZ zoom stereo microscopes ergonomics

To support a variety of observation methods and applications used for research and inspection, an assortment of accessories, such as illumination units, stands, and eyepiece tubes, are available.

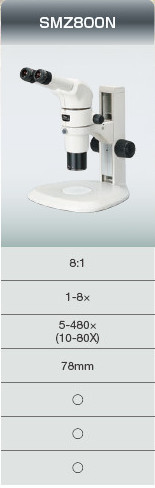

Specifications, SMZ800N:

Nikon-stereomikroskooppien esite:

Nikon stereo microscopes brochure

Ota yhteyttä meihin lisätietoja varten

osio vaihtuu

Nikon SMZ745/SMZ745T

Nikon_logo

Nikon SMZ745/SMZ745T -stereomikroskooppi

By optimizing the design of the Greenough optical system, Nikon was able to realize a 7.5x zoom and a total magnification from 3.35x to 300x. With the adoption of the new total reflection prism, the SMZ745/745T allows bright and high contrast images to be obtained at any magnification.

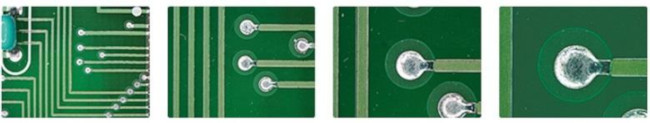

Nikon SMZ745/SMZ745T Impressive 7.5x zoom magnification

In addition to high zoom ratio and magnification, the SMZ745/745T offers an impressive 115 mm working distance, providing enough room for fabrication and manipulation on the sample.

Nikon SMZ745/SMZ745T 115mm working distance

The SMZ745T is equipped with a camera port (trinocular type) and a built-in 0.55x C-mount adapter. This permits direct mounting of any Nikon DS Series Digital Camera and simplifies the process of digital imaging, image capture and observation via monitor. In addition, this model incorporates an optical path switching lever that enables easy switchover between eyepiece and camera.

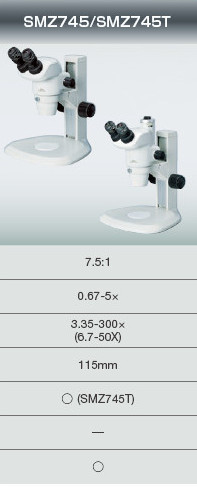

Specifications, SMZ745/SMZ745T:

Nikon-stereomikroskooppien esite:

Nikon stereo microscopes brochure

Ota yhteyttä meihin lisätietoja varten

Nikon on johtava optisten instrumenttien valmistaja. Yhtiö on perustettu Japanissa vuonna 1917.

Yli 100-vuotisen toimintansa aikana Nikon on kehittänyt edistyneitä ja tinkimättömän laadukkaita mikroskooppeja ja muita optisia laitteita.

Tänä päivänä Nikon Metrology tarjoaa laajan tuotevalikoiman mikroskopia- ja mittalaitteita.

Nikon_logo

Nikon Metrology product groups

Nikon-stereomikroskooppien esite:

Nikon stereo microscopes brochure

Ota yhteyttä lisätietoja varten.

Euromex NexiusZoom

NexiusZoom-stereomikroskoopit

Euromex logo

Euromexin NexiusZoom -stereomikroskoopit ovat suosittuja sekä teollisuuskäytössä, että tieteellisessä tutkimuksessa ja koulutuksessa niiden erinomaisen hinta-laatusuhteen ansiosta.

Kaikille NexiusZoom -malleille yhteiset ominaisuudet:

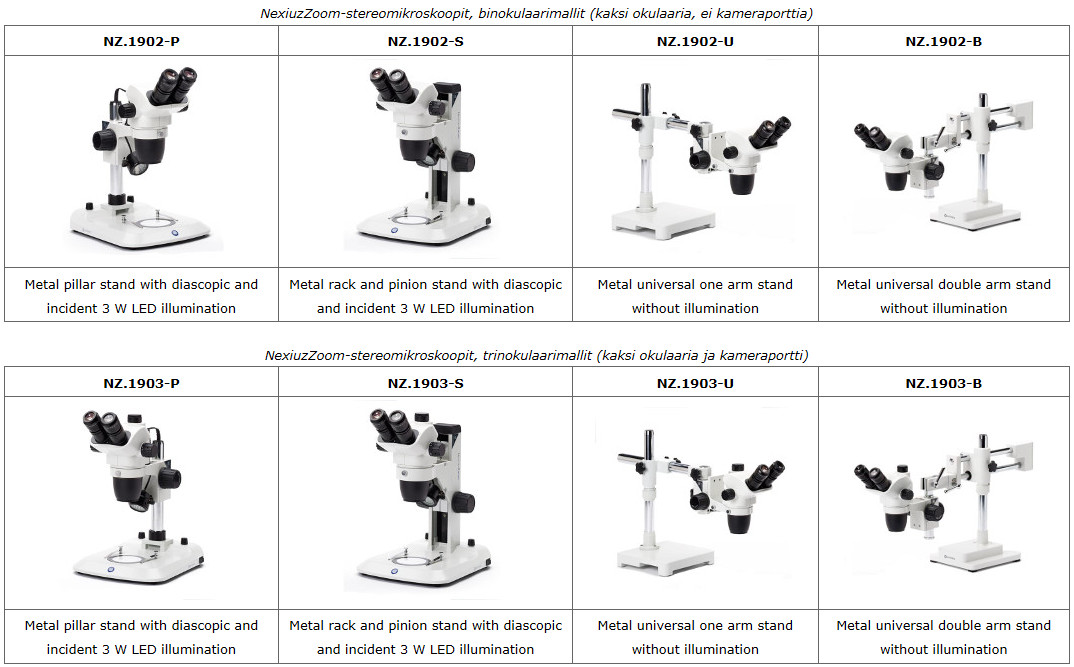

NexiusZoom-stereomikroskooppimallit

Euromex Microscopen on hollantilainen mikroskooppivalmistaja, joka on perustettu vuonna 1966.

Yhtiön valmistamia Euromex ja Novex -mikroskooppeja myydään yli 80 maassa, tähän mennessä yhtiö on toimittanut yli miljoona mikroskooppia.

Euromex takaa mikroskooppiensa ja muiden instrumenttiensa varaosien saatavuuden 20 vuodeksi. Yhtiö on ISO 9001:2008 -sertifioitu.

Euromex logo

NexiusZoom-stereomikroskooppien esitepdf_link

Tutustu myös valovaihtoehtoihin ja mikroskooppitarvikkeisiin

Ota yhteyttä lisätietoja varten.
