NIKON-MIKROSKOOPPIKAMERAT

Nikon hyödyntää maailmankuulua kamera-asiantuntemustaan kehittäessään mikroskooppikamerajärjestelmiä, joissa kamerat on optimoitu mikroskooppisovelluksiin.
Nikon DS (Digital Sight) -kamerasarja kattaa sovellukset korkeatasoisesta tutkimuksesta yksinkertaiseen mikroskooppikuvan tallennukseen. NIS-Elements -ohjelmaperheestä löytyy ratkaisu kuvien analysointi- ja mittaustarpeisiin.
Tutustu alla olevasta esittelystä valikoiman kameramalleihin:
Nikon Digital Sight 10


Digital Sight 10 features:
- High-resolution image observation;
Outstanding 6K ultra-high image quality, easy acquisition of fine structure. Microscope images up to 6000x3984 pixels (23.9MP) can be captured, ideal for observing and analysing fine structures.
- Fast live image display;
Outstanding frame rate for the best images of a moving sample, with convenient, stress-free fine focusing. Maximum resolution of 6000x3984 pixels (23.9MP) at 9fps, 2000x1328 pixels (2.7MP) at 55fps.
- High sensitivity and low noise;
High sensitivity equivalent to ISO200 in colour mode and ISO800 in monochrome mode. Image acquisition in the near infrared region in one camera model.
- Downsizing of the camera body;
Camera body is downsized by 30% or more compared to the previous model.
Specifications, Digital Sight 10:

Lataa Nikon Digital Sight -sarjan esite tästä
Ota yhteyttä meihin lisätietoja varten

Nikon DS-Qi2


DS-Qi2 features:
- High sensitivity and low noise;
The newly developed 16.25-megapixel monochrome CMOS sensor for the monochrome digital camera for microscopes offers 36.0 x 23.9 mm image size.
The S/N ratio is five times better than that of conventional models, with quantum efficiency*1 up to 77% and 2.2-electron readout noise.
In addition, Peltier cooling (electronic cooling) reduces dark-current noise*2 and produces clear images with reduced noise even with dark fluorescent specimens.
*1Conversion efficiency from light to electrical signals.
*2Noise caused by heat from the sensor during lengthy exposures.
- Superior quantitative performance;
Low ± 1% linearity error of output power to input light intensity enables correct measurement of changes in brightness of specimens.
- High-speed live-image display;
Thanks to the USB3.0 computer connection and CMOS sensor, which provides high-speed data readout, the frame rate has been significantly improved to 45 fps (1636 x 1088 pixels),
from 19 fps (1280 x 1024 pixels) with conventional models. This enables fast live-image display and easy observation point selection and focusing.
- Case study DS-Qi2: Open University establishes world lead in weld testing for safety-critical applications

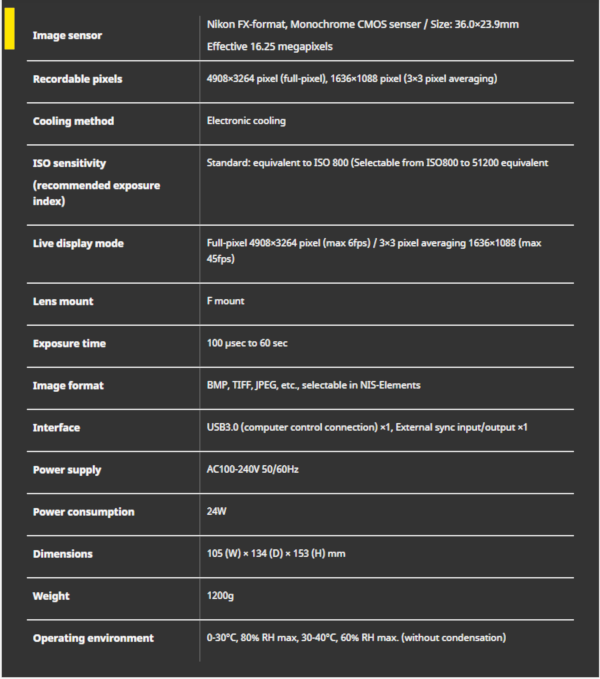

Specifications, DS-Qi2:

Lataa Nikon Digital Sight -sarjan esite tästä
Ota yhteyttä meihin lisätietoja varten
Nikon DS-Fi3


DS-Fi3 features:
- High Definition Imaging;
The DS-Fi3 is equipped with a 5.9 megapixel CMOS image sensor, which enables the capture of high-definition images of up to 2880 x 2048 pixels.
With a new CMOS image sensor and high-speed data transfer via USB3.0, the DS-Fi3 enables fast focusing even in high-resolution imaging
and efficient image acquisition when using a wide range of illumination techniques.
Nestekidepaneeli kuvattuna DS-Fi3-kameralla, TU Plan Fluor 10x-objektiivi

- High Sensitivity and Low Noise;
The DS-Fi3 has significantly higher quantum efficiency and lower readout noise than conventional models.
It allows the capture of brighter images with higher S/N ratios in fluorescence observation.

- High-speed Live Display;
Due to the high-speed data readout by the CMOS image sensor and high-speed USB3.0 data transfer,
the DS-Fi3 displays live images of full 2880 x 2048-pixel images at 15 fps, and 1440 x 1024-pixel images at 30 fps. This enables smooth display during focusing
and the selection of observation locations.

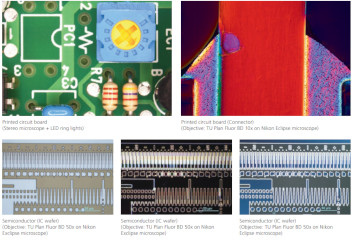

Piirilevy kuvattuna DS-Fi3-kameralla, TU Plan Fluor 5x-objektiivi

- Excellent Color Reproducibility;
Nikon is well-known for outstanding and lifelike color reproduction, and developing superior algorithms
for creating results that look like the actual samples. These algorithms are used in all of the color cameras in the Digital Sight lineup.

- Direct connection to a PC;
The DS-Fi3 allows direct connection to a PC via a USB3.0 interface to control the camera and capture images
using the imaging software NIS-Elements.

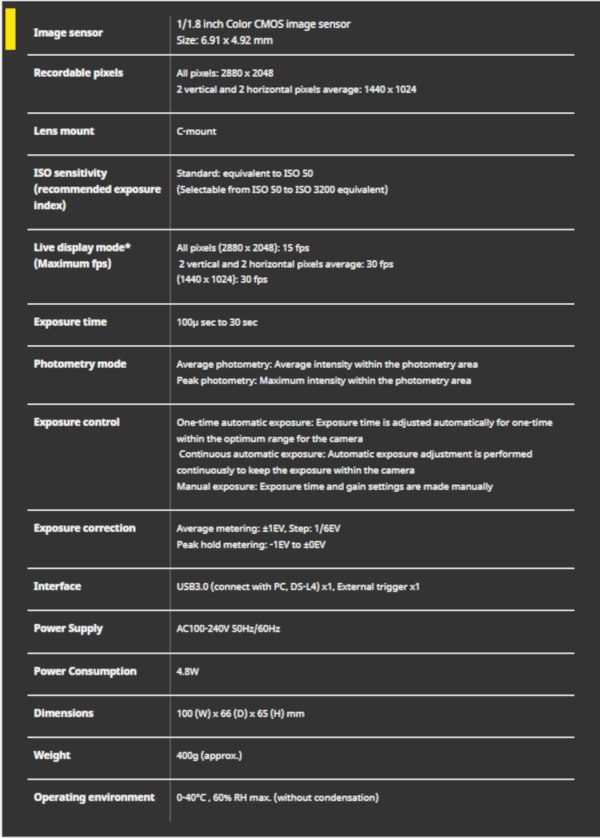

Specifications, DS-Fi3:

* Maximum frame rate depends on exposure time
Lataa Nikon Digital Sight -sarjan esite tästä
Ota yhteyttä meihin lisätietoja varten
Nikon Digital Sight 1000


Digital Sight 1000:
- Easy operation on HDMI display;
By connecting the microscope to a camera and HDMI monitor, movie and still images can be captured and data can be saved onto a SD card.
No PC connection is required to display scales and reticles, as well as to conduct simple measurements.
- Effective in communication in routine inspection applications;
This product enables acquisition of 2-megapixel Full HD images and live display at 30 frames per second.
You can quickly follow changes during observation of the target when aligning or focusing a sample.
It produces a positive effect on teaching and discussion at educational institutions, and day-to-day industrial applications.
- Simple setup and operation contribute to efficiency in use;
It is possible to connect a display and a mouse to Digital Sight 1000.
A camera can be controlled without a PC, and a process from setup to display and acquisition can be implemented in an easy-to-follow way.
This product contributes to efficient operation as a stand-alone solution.

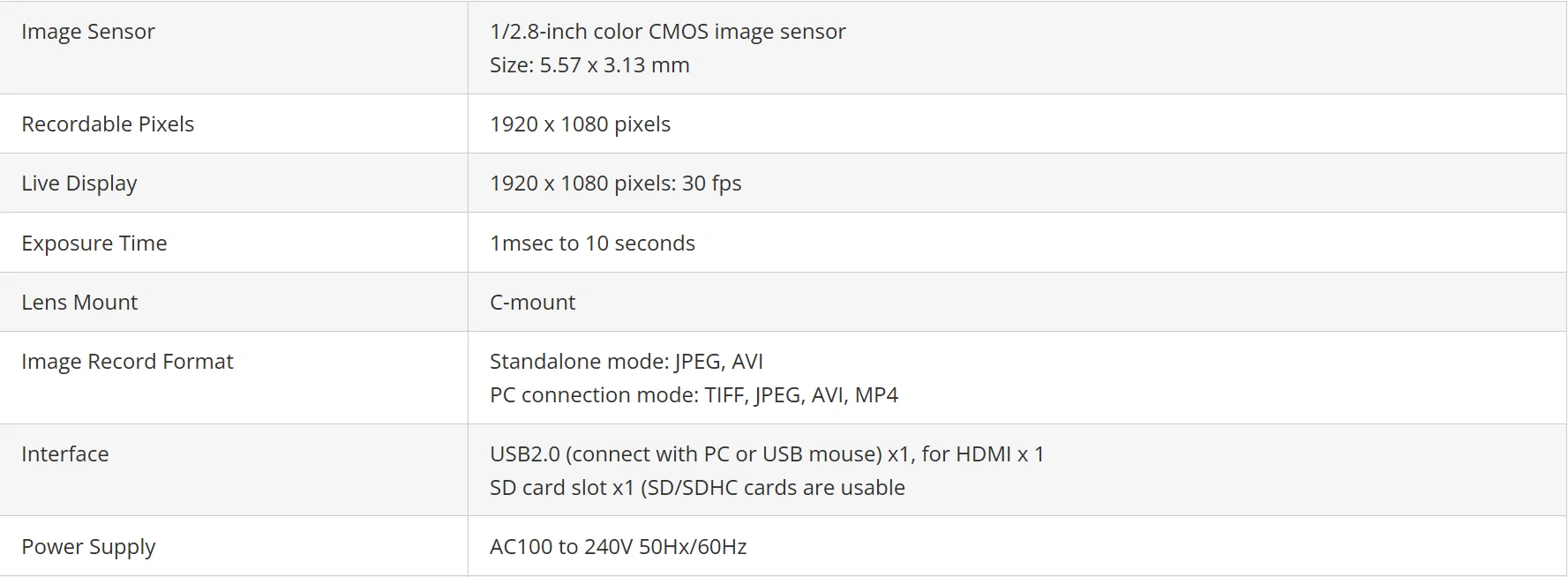

Specifications, Digital Sight 1000:

Lataa Nikon Digital Sight -sarjan esite tästä
Ota yhteyttä meihin lisätietoja varten
Nikon on johtava optisten instrumenttien valmistaja. Yhtiö on perustettu Japanissa vuonna 1917.
Yli 100-vuotisen toimintansa aikana Nikon on kehittänyt edistyneitä ja tinkimättömän laadukkaita mikroskooppeja ja muita optisia laitteita.
Tänä päivänä Nikon Metrology tarjoaa laajan tuotevalikoiman mikroskopia- ja mittalaitteita.


Lataa Nikon Digital Sight -sarjan esite tästä
Ota yhteyttä lisätietoja varten.
