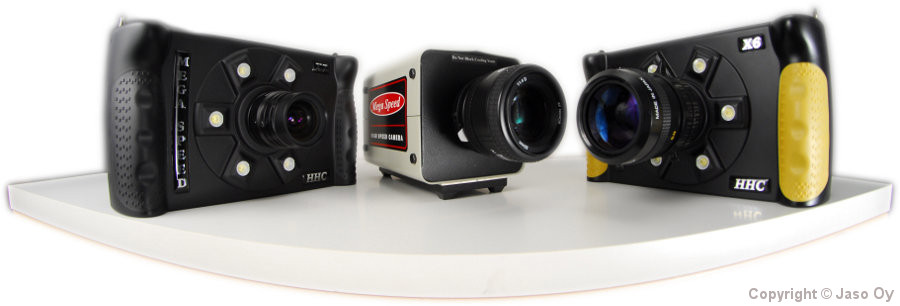

MEGA SPEED-SUURNOPEUSKAMERAT

Mega Speed -kamerat ovat korkeatasoisia suurnopeuskameroita, joille on paljon erilaisia käyttösovelluksia teollisuudessa, tieteessä ja tutkimuksessa.
Katso esimerkkivideoita Mega Speed -kameroiden valmistajan verkkosivuilla ja galleriassamme
Mega Speed -kameroita on saatavana 8 bitin mustavalko- ja 24 bitin värikameroina. Kameroissa on C-mount tai F-mount -liitäntä,
jonka ansiosta objektiivivalikoima on mittava.

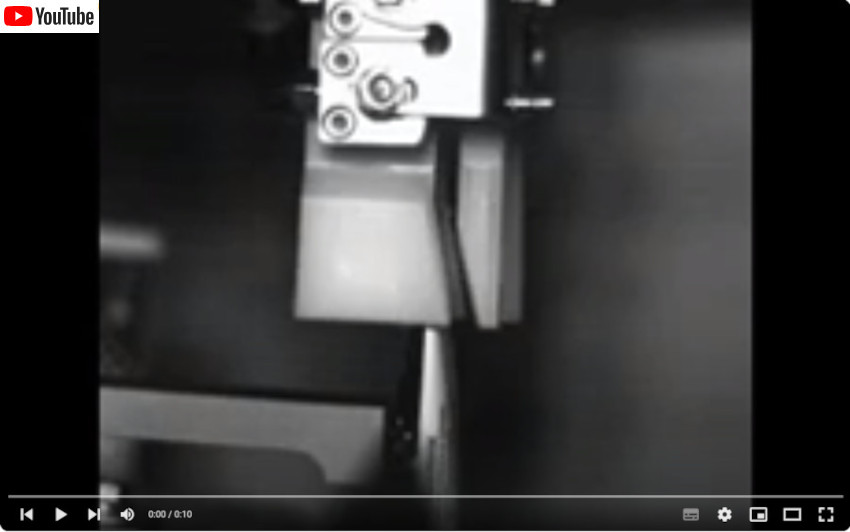

Mega Speed Youtube video Tube Transfer Slow Motion:

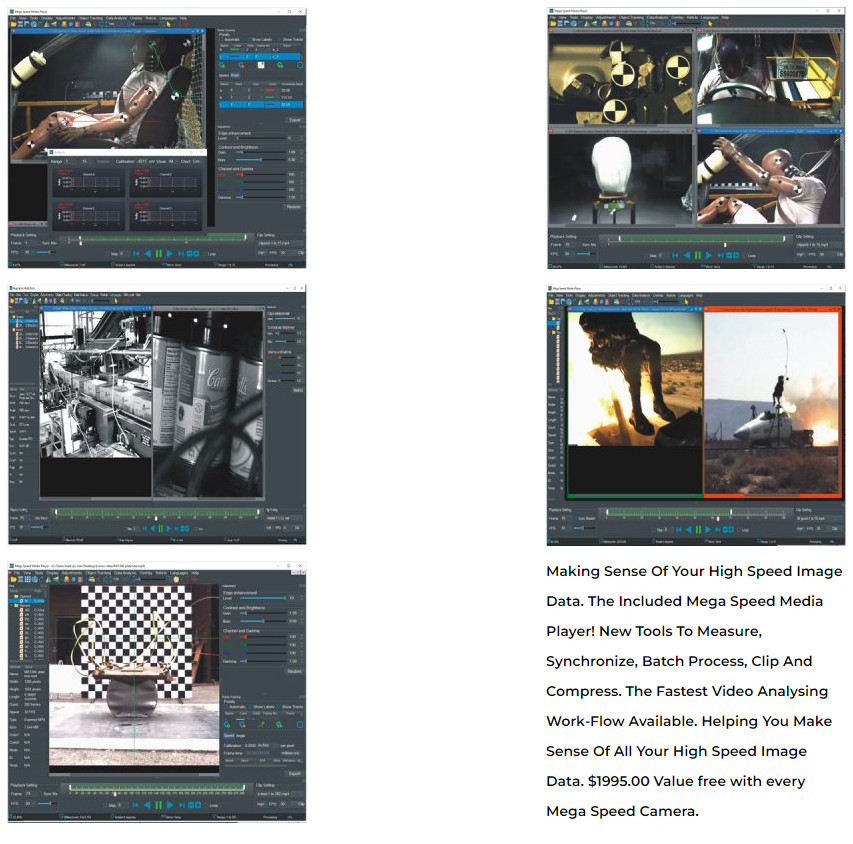

Kameran mukana tulee ohjelmisto kameran toimintojen hallintaan. Sekä kannettavien että kiinteästi asennettavien kameroiden säätö ja kuvadatan hallinta on tehty
käyttäjäystävälliseksi ja helpoksi omaksua.

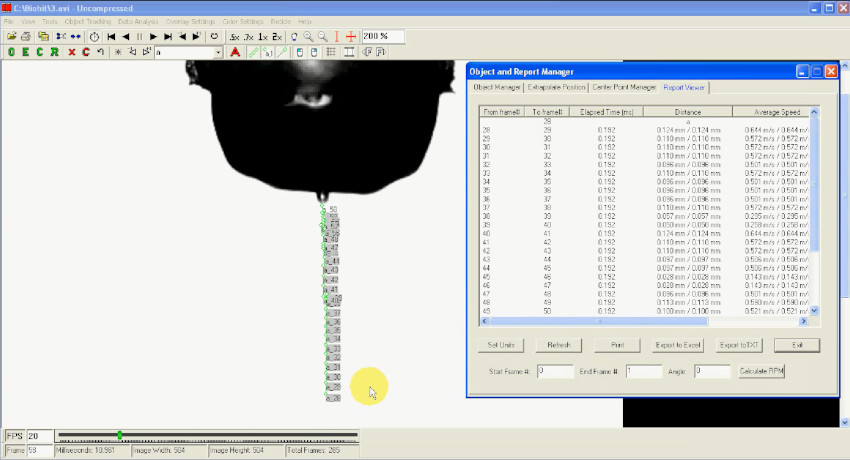

Ohjelman avulla on mahdollista myös tehdä liikeanalyysiä kiinnittämällä yksittäiseen objektiin seuranta (tracking) jolloin saadaan numeerista dataa objektin liikkeistä ja nopeudesta.

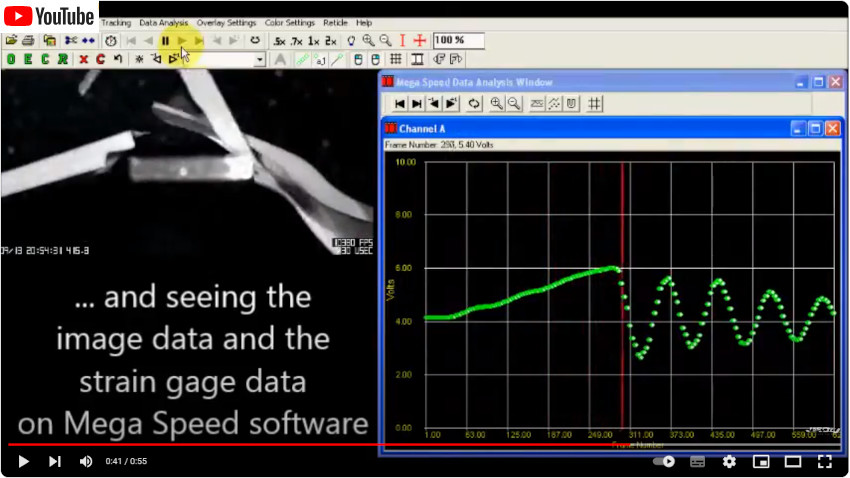

Kameralle tallentuvan kuvamateriaalin lisäksi kameralle voidaan samanaikaisesti syöttää informaatiota esimerkiksi paineanturilta tai venymäliuskalta.
Anturilta syötetään analogista jännitetietoa, jonka kamera digitoi ja tallentaa muistiin. Tiedot voidaan siirtää tietokoneelle ja tarkastella graafisena esityksenä,
samantahtisesti kuvamateriaalin kanssa. Katso esimerkkivideomme YouTubessa:

Mega Speed -kamerat ovat lyömätön apuväline teollisuuden tuotantolinjojen ongelmakohtien etsimisessä ja analysoinnissa. Kamera voidaan jättää itsenäisesti kuvaamaan tuotantolinjaa, lisävarusteena käytettävälle trigger box -yksikölle voidaan syöttää linjalta ohjauspulssia, jonka avulla määritetään tallennettava kuvamateriaali juuri niiltä sekunneilta, jolloin kiinnostava ilmiö tapahtui.
Katso Galleriassamme esimerkkivideoita
Ota yhteyttä niin kerromme lisätietoja ja voimme yhdessä valita juuri teidän tarpeisiinne sopivan kameran.
Lue lisää:
Suurnopeuskamera teollisuuskäytössä
Yleistä suurnopeuskuvauksesta
Kannettavat mallit
Klikkaa taulukosta kameramallin esittelyyn

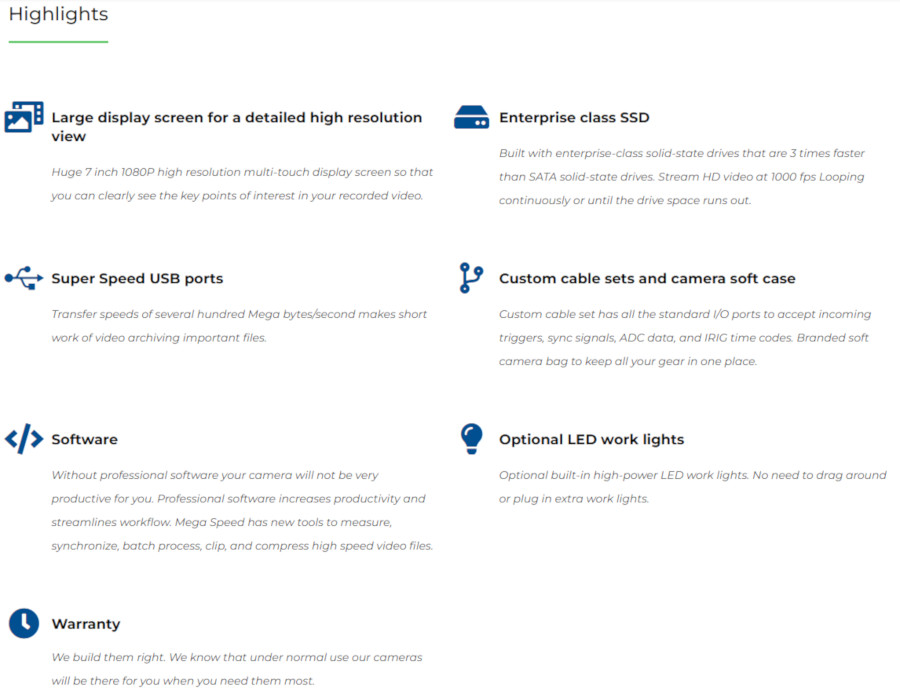

Mega Speed kannettavat suurnopeuskamerat vapauttavat sinut kuvaamaan kentälle.
Kamerassa on intuitiivinen ja käyttäjäystävällinen ohjaus kosketusnäytöltä, tehokas LiPo-akku ja osassa kameramalleja integroidut tehoLEDvalot. Tämän kameran nappaat nopeasti mukaan keskelle toimintaa!

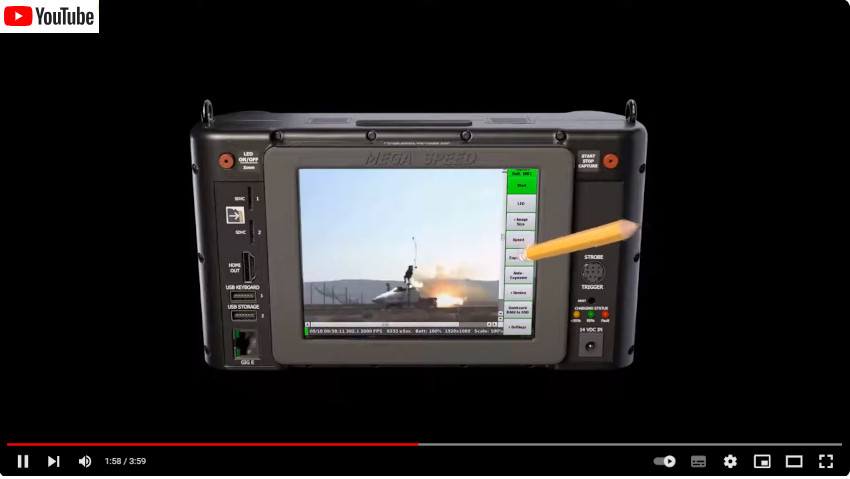

Mega Speed Youtube video X9 PRO:

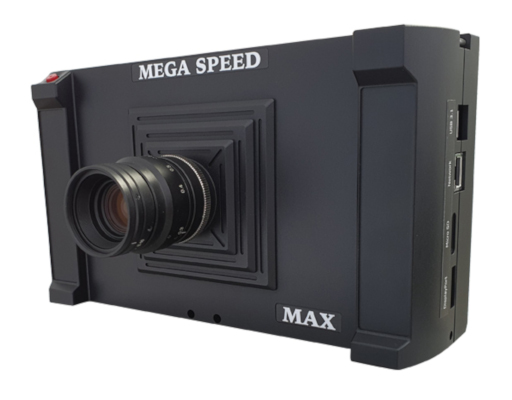

MAX V1


The Mega Speed MAX V1 camera can save high speed video in either one of two ways.
The first way is to save the video to the cameras SDRAM for a few seconds, stop the recording, download the video and then record again.
This works great for applications that require the cameras highest frame rate possible however it is too time consuming for certain
other applications that require quick repetitive saves or long term recording at a slightly lower frame rate.
The second way that the Mega Speed MAX V1 can save the high speed video is to save it directly to the internal drive every time
you press the record button. With Mega Speed Direct-to-Drive technology there is no wait time lost during the download cycle since the data
is immediately saved to the drive as it is recorded. When saving this way the Mega Speed MAX can still save at a fast enough frame rate and large
enough image size to satisfy a great number of high speed video recording applications.

- 4/3" color or monochrome 1920 x 1080 format CMOS
- 1 080 fps at maximum resolution of 1920 x 1080 pixels
- 57 500 fps at minimum resolution of 1920 x 16 pixels
- Rear 1920 x 1080 high resolution 7" LCD screen. Full touch screen operation and image editing
- Trigger In: 3 to 24 VDC TTL centre pin positive external rising edge, countdown timer or switch closure
- Sync In/Sync Out: 3.3 VDC TTL via multi pin connector center pin positive, active high
- Data Acquisition: Optional
- User can save images in MP4, MP5, AVI, JPEG, BMP, TIFF, RAW and DNG file formats
- Streaming Mode: Stream in Direct to Drive mode up to 2000 fps to the internal removable SATA SSD
- 16 GB or 32 GB high speed internal image bufferB high speed SSD
- Removable Storage: 2 Super Speed USB 3.1 ports & 1 fast micro SD UC 1 port
- Tripod Support: Dual ¼ x 20 tri-pod mounts top and bottom
- PC Requirements: No PC required for camera operation. A modern PC with USB 3.1 for files transfers.
- PC Software: Mega Speed Media Player for post processing, object tracking, image analysis, video editing
- WiFi and GigE connectivity is available as an option
- Lens Mount: Standard "C" mount or optional m4/3 lens mount
- Camera Size: 2.5" x 9" x 5"
- Camera Body: Hand held light weight machined anodized aluminium body
- Li Po re-chargeable / removable battery charges while plugged in and while in use
- Temperature: -20°C to 40°C Operational range. -40°C to +50°C storage range
Mega Speed MAX V1 esite:

Kysy lisätietoja
Takaisin kannettavien malleihin

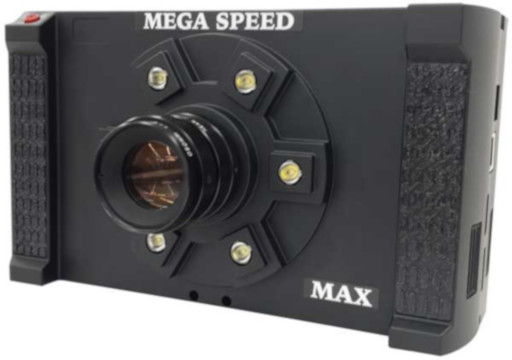

MAX V2


The Mega Speed MAX V2 camera can save high speed video in either one of two ways.
The first way is to save the video to the cameras SDRAM for a few seconds, stop the recording, download the video and then record again.
This works great for applications that require the cameras highest frame rate possible however it is too time consuming for certain
other applications that require quick repetitive saves or long term recording at a slightly lower frame rate.
The second way that the Mega Speed MAX V2 can save the high speed video is to save it directly to the internal drive every time
you press the record button. With Mega Speed Direct-to-Drive technology there is no wait time lost during the download cycle since the data
is immediately saved to the drive as it is recorded. When saving this way the Mega Speed MAX can still save at a fast enough frame rate and large
enough image size to satisfy a great number of high speed video recording applications.

- 4/3" color or monochrome 1920 x 1080 format CMOS
- 6 high power built in LED work lights
- 2 160 fps at maximum resolution of 1920 x 1080 pixels
- 230 000 fps at minimum resolution of 1920 x 4 pixels
- Rear 1920 x 1080 high resolution 7" LCD screen. Full touch screen operation and image editing
- Trigger In: 3 to 24 VDC TTL center pin positive external rising edge, switch closure or software trigger
- Sync In/Sync Out: 3.3 VDC TTL via multi pin connector center pin positive, active high
- Data Acquisition: 4 Channel Data acquisition connection on side of camera to accept outside signal source
- User can save images in MP4, MP5, AVI, JPEG, BMP, TIFF, RAW and DNG file formats
- Streaming Mode: Stream in Direct to Drive mode up to 3000 fps to the internal high speed SSD
- 16, 32 or 64 GB high speed image buffer memory plus 1, 2 or 4TB internal high speed SSD
- Removable Storage: 2 Super Speed USB 3.1 ports & 1 fast micro SD UC 1 port
- Tripod Support: Dual ¼ x 20 tri-pod mounts top and bottom
- PC Requirements: No PC required for camera operation. A modern PC with USB 3.1 for files transfers.
- PC Software: Mega Speed Media Player for post processing, object tracking, image analysis, video editing
- WiFi and Gige connectivity is available as an option
- Lens Mount: Standard "C" mount or optional m4/3 lens mount
- Camera Size: 2.99" x 8.97" x 5.16"
- Camera Body: Hand held light weight machined anodized aluminium body
- Li Po re-chargeable / removable battery charges while plugged in and while in use
- Temperature: -20°C to 40°C Operational range. -40°C to +50°C storage range
Mega Speed MAX V2 esite:

Kysy lisätietoja
Takaisin kannettavien malleihin

MAX V3


The Mega Speed MAX V3 camera can save high speed video in either one of two ways.
The first way is to save the video to the cameras SDRAM for a few seconds, stop the recording, download the video and then record again.
This works great for applications that require the cameras highest frame rate possible however it is too time consuming for certain
other applications that require quick repetitive saves or long term recording at a slightly lower frame rate.
The second way that the Mega Speed MAX V3 can save the high speed video is to save it directly to the internal drive every time
you press the record button. With Mega Speed Direct-to-Drive technology there is no wait time lost during the download cycle since the data
is immediately saved to the drive as it is recorded. When saving this way the Mega Speed MAX can still save at a fast enough frame rate and large
enough image size to satisfy a great number of high speed video recording applications.

- 4/3" color or monochrome 1920 x 1080 format CMOS
- Built in high power LED work lights available as an option
- 3 000 fps at maximum resolution of 1920 x 1080 pixels
- 290 000 fps at minimum resolution of 1920 x 4 pixels
- Rear 1920 x 1080 high resolution 7 inch LCD screen. Full touch screen operation and image editing
- Trigger In: 3 to 24 VDC TTL centre pin positive external rising edge, switch closure or software trigger
- Sync in/Sync Out: 3.3 VDC TTL via multi pin connector center pin positive, active high
- Data Acquisition: 4 Channel Data acquisition connection of rear of camera to accept outside signal source
- User can save images in MP4, MP5, AVI, JPEG, BMP, TIFF, RAW and DNG file formats
- Streaming Mode: Stream in Direct To Drive mode up to 3 000 fps to the internal high speed SSD
- 32 GB or 64 GB internal high speed image buffer memory plus 2 TB or 4 TB internal SSD
- Removable Storage: 2 Super Speed USB 3.1 ports & 1 fast micro SD UC 1 port
- Tripod Support: Dual ¼ x 20 tri-pod mounts top and bottom
- PC Requirements: No PC required for camera operation. A modern PC with USB 3.1 for files transfers.
- PC Software: Mega Speed Media Player for post processing, object tracking, image analysis, video editing
- WiFi and Gige connectivity are available as an option
- Lens Mount: M4/3 lens mount. The "C" mount and or the LED work lights are optional
- Camera Size: 2.99" x 8.97" x 5.16"
- Camera Body: Hand held light weight machined anodized aluminium body
- Li Po re-chargeable / removable battery charges while plugged in and while in use
- Temperature: -20°C to 40°C Operational range. -40°C to +50°C storage range
Mega Speed MAX V3 esite:

Kysy lisätietoja
Takaisin kannettavien malleihin

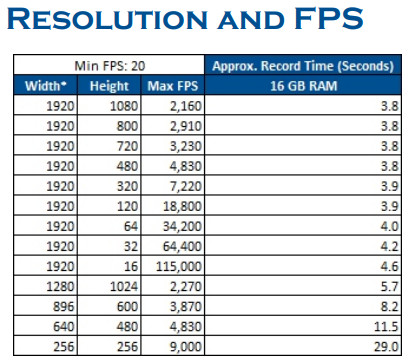

HHC X9 PRO



- 2,000 FPS recording speeds at 1920 x 1080 image sizes
- Hand-held portable wide angle 1080P multi-purpose trouble-shooting specialist
- Built in high power LED work lights for difficult lighting conditions
- Large 6" menu driven touch screen interface
- HDMI video out for external monitors
- Up to 16 GB of high speed camera ram
- Up to 2TB hot swapable solid state drive
- USB and micro SD card slots for on-board storage
- High speed gigabit camera interface when PC control is needed
- "C" mount lens interface for easy lens selection
- High capacity LiPo battery
- Impact resistant ABS camera body
- Analytical PC software included
Lataa Mega Speed HHC X9 PRO esite tästä
Kysy lisätietoja
Takaisin kannettavien malleihin

HHC X8 PRO

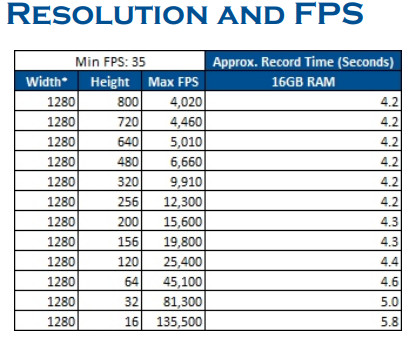

- 4,000 FPS recording speeds at 1280 x 800 image sizes
- Hand-held portable multi-purpose trouble-shooting specialist
- Built in high power LED work lights for difficult lighting conditions
- Large 6" menu driven touch screen interface
- HDMI video out for external monitors
- Up to 16 GB of high speed camera ram
- Up to 2TB hot swapable solid state drive
- USB and micro SD card slots for on-board storage
- High speed gigabit camera interface when PC control is needed
- "C" mount lens interface for easy lens selection
- High capacity LiPo battery
- Impact resistant ABS camera body
- Analytical PC software included
Lataa Mega Speed HHC X8 PRO esite tästä
Kysy lisätietoja
Takaisin kannettavien malleihin

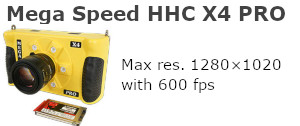

HHC X4 PRO



- 600 FPS recording speeds at 1280 x 1024 image sizes
- Hand-held portable trouble-shooting production line specialist
- Built in high power LED work lights for difficult lighting conditions
- Large 6" menu driven touch screen interface
- HDMI video out for external monitors
- Up to 8 GB of high speed camera ram
- Up to 1TB hot swapable solid state drive
- USB and micro SD card slots for on-board storage
- High speed gigabit camera interface when PC control is needed
- "C" mount lens interface for easy lens selection
- Analytical PC software included
Lataa Mega Speed HHC X4 PRO esite tästä
Kysy lisätietoja
Takaisin kannettavien malleihin
PC-ohjaus/Mega Speed MS-Sarja
Klikkaa taulukosta kameramallin esittelyyn

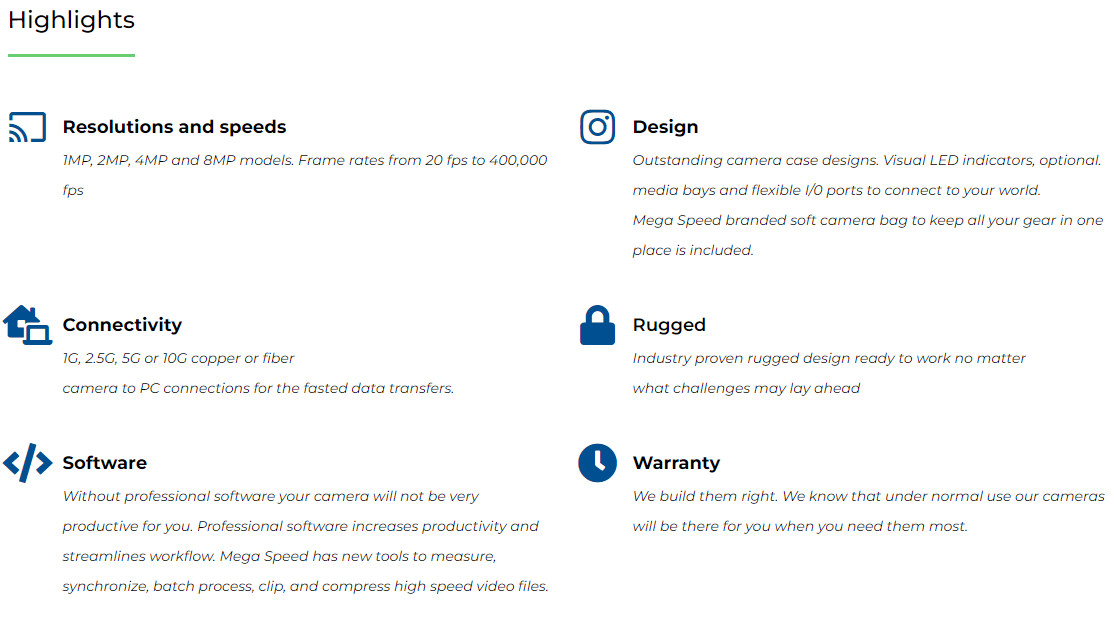

Mega Speed MS-sarjan PC:ltä ohjattavissa kameroissa on tehokkaat työkalut pakattuina kompaktiin pakettiin. Valikoimasta löytyy ratkaisu erilaisiin kuvaustarpeisiin.
Kuvamateriaali tallentuu kameran sisäiseen huippunopeaan muistiin, josta käyttäjä siirtää kuvadatan Gigabit Ethernet-yhteydellä PC:lle. Tietokoneelle siirtyy myös esikatselukuvaa reaaliajassa.
Kaikista kameroista on valittavissa harmaasävy- tai värikameramalli. MS130K- ja MS140K-kameroille optiikalle F-mountliitäntä. Muissa malleissa optiikalle on C-mountliitäntä vakiona, F-mountliitäntä optiona.



MS140K


- 3600 FPS recording speeds at 1920 x 1080
- 400,000 FPS recording speeds at minimum image size
- Professional 2 mega pixel 1080P high speed camera
- High speed RJ45 10/100/1000 Gigabit Ethernet
- High speed 10 Gigabit Ethernet available
- 32 GB high speed DDR camera RAM
- 64 GB high speed DDR camera RAM available
- Re-moveable 256 GB to 1 TB solid state drives available
- 4 Channel ADC data analytics
- "C" or "F" mount lens interface for easy lens selection
- 60 minute internal battery back-up available
- BNC I/O jacks for sync and trigger signals
- Real time 30 FPS PC image preview while recording
- Real time 60 FPS SDI image preview to external monitor while recording
- Programmable trigger modes
- LED status indicators for all camera functions
- 12 VDC supply voltage or optional 10VDC to 36 VDC
- Professional analytical PC software included with object tracking
- Ergonomic anodized aluminum camera body
- Five 1/4" x 20 tpi mounting locations
- -40° C to 40° C operating range
Lataa Mega Speed MS140K esite tästä
Kysy lisätietoja
Takaisin MS-sarjan malleihin

MS130K


- 2000 FPS recording speeds at 1920 x 1080
- 230,000 FPS recording speeds at minimum image size
- Professional 2 mega pixel 1080P high speed camera
- High speed RJ45 10/100/1000 Gigabit Ethernet
- High speed 10 Gigabit Ethernet available
- 32 GB high speed DDR camera RAM
- 64 GB high speed DDR camera RAM available
- Re-moveable 256 GB to 1 TB solid state drives available
- 4 Channel ADC data analytics
- "C" or "F" mount lens interface for easy lens selection
- 60 minute internal battery back-up available
- BNC I/O jacks for sync and trigger signals
- Real time 30 FPS PC image preview while recording
- Real time 60 FPS SDI image preview to external monitor while recording
- Programmable trigger modes
- LED status indicators for all camera functions
- 12 VDC supply voltage or optional 10VDC to 36 VDC
- Professional analytical PC software included with object tracking
- Ergonomic anodized aluminum camera body
- Five 1/4" x 20 tpi mounting locations
- -40° C to 40° C operating range
Lataa Mega Speed MS130K C Mount esite tästä
Lataa Mega Speed MS130K F Mount esite tästä
Kysy lisätietoja
Takaisin MS-sarjan malleihin

MS120K


- 4000 FPS recording speeds at 1280 x 800
- 270,000 FPS recording speeds at minimum image size
- Professional high speed camera
- High speed RJ45 10/100/1000 Gigabit Ethernet
- High speed 10 Gigabit Ethernet available
- 32 GB high speed DDR camera RAM
- 64 GB high speed DDR camera RAM available
- Re-moveable 256 GB to 1 TB solid state drives available
- 4 Channel ADC data analytics
- "C" or "F" mount lens interface for easy lens selection
- 60 minute internal battery back-up available
- BNC I/O jacks for sync and trigger signals
- Real time 30 FPS PC image preview while recording
- Real time 60 FPS SDI image preview to external monitor while recording
- LED status indicators for all camera functions
- 12 VDC supply voltage or optional 10VDC to 36 VDC
- Professional analytical PC software included with object tracking
- Ergonomic anodized aluminum camera body
- Five 1/4" x 20 tpi mounting locations
- -40° C to 40° C operating range
Lataa Mega Speed MS120K esite tästä
Kysy lisätietoja
Takaisin MS-sarjan malleihin

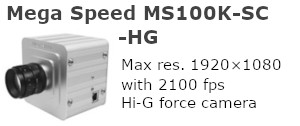

MS100K-SC-HG


- 2100 FPS recording speeds at 1920 x 1080
- 230,000 FPS recording speeds at minimum image size
- Rugged Hi-G force special purpose high speed camera
- High speed RJ45 10/100/1000 Gigabit Ethernet
- 16 GB high speed DDR camera RAM
- "C" mount lens interface for easy lens selection
- Secure multi-pin screw-on jacks for sync and trigger signals
- Real time 30 FPS image preview while recording
- Programmable trigger modes
- Professional analytical PC software included
- Anodized aluminum housing
- Eight 1/4" x 20 tpi mounting locations
- -40° C to 40° C operating range
Lataa Mega Speed MS100K-SC-HG esite tästä
Kysy lisätietoja
Takaisin MS-sarjan malleihin

MS100K-SC


- 2100 FPS recording speeds at 1920 x 1080
- 230,000 FPS recording speeds at minimum image size
- 2 mega pixel general purpose high speed camera
- High speed RJ45 10/100/1000 Gigabit Ethernet
- 16 GB high speed DDR camera RAM
- "C" mount lens interface for easy lens selection
- BNC I/O jacks for sync and trigger signals
- Real time 30 FPS image preview while recording
- Programmable trigger modes
- Professional analytical PC software included
- Anodized aluminum housing
- Eight 1/4" x 20 tpi mounting locations
- -40° C to 40° C operating range
Lataa Mega Speed MS100K-SC esite tästä
Kysy lisätietoja
Takaisin MS-sarjan malleihin

MS95K-SC


- 1000 FPS recording speeds at 2560 x 1600
- 142,000 FPS recording speeds at minimum image size
- 4 mega pixel general purpose high speed camera
- High speed RJ45 10/100/1000 Gigabit Ethernet
- 16 GB high speed DDR camera RAM
- "C" mount lens interface for easy lens selection
- BNC I/O jacks for sync and trigger signals
- Real time 30 FPS image preview while recording
- Programmable trigger modes
- Professional analytical PC software included
- Anodized aluminum housing
- Eight 1/4" x 20 tpi mounting locations
- -40° C to 40° C operating range
Lataa Mega Speed MS95K-SC esite tästä
Kysy lisätietoja
Takaisin MS-sarjan malleihin

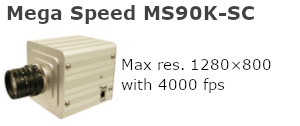

MS90K-SC


- 4000 FPS recording speeds at 1280 x 800
- 270,000 FPS recording speeds at minimum image size
- Multi-purpose general purpose high speed camera
- High speed RJ45 10/100/1000 Gigabit Ethernet
- 16 GB high speed DDR camera RAM
- "C" mount lens interface for easy lens selection
- BNC I/O jacks for sync and trigger signals
- Real time 30 FPS image preview while recording
- Programmable trigger modes
- Professional analytical PC software included
- Anodized aluminum housing
- Eight 1/4" x 20 tpi mounting locations
- -40° C to 40° C operating range
Lataa Mega Speed MS90K-SC esite tästä
Kysy lisätietoja
Takaisin MS-sarjan malleihin

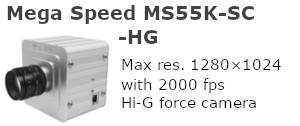

MS55K-SC-HG


- 2000 FPS recording speeds at 1280 x 1024
- 200,000 FPS recording speeds at minimum image size
- Rugged Hi-G force special purpose high speed camera
- High speed RJ45 10/100/1000 Gigabit Ethernet
- 16 GB high speed DDR camera RAM
- "C" mount lens interface for easy lens selection
- Secure multi-pin screw-on jacks for sync and trigger signals
- Real time 30 FPS image preview while recording
- Programmable trigger modes
- Professional analytical PC software included
- Anodized aluminum housing
- Eight 1/4" x 20 tpi mounting locations
- -40° C to 40° C operating range
Lataa Mega Speed MS55K-SC-HG esite tästä
Kysy lisätietoja
Takaisin MS-sarjan malleihin

MS55K-SC


- 2000 FPS recording speeds at 1280 x 1024
- 200,000 FPS recording speeds at minimum image size
- Multi-purpose general purpose high speed camera
- High speed RJ45 10/100/1000 Gigabit Ethernet
- 16 GB high speed DDR camera RAM
- "C" mount lens interface for easy lens selection
- BNC I/O jacks for sync and trigger signals
- Real time 30 FPS image preview while recording
- Programmable trigger modes
- Professional analytical PC software included
- Anodized aluminum housing
- Eight 1/4" x 20 tpi mounting locations
- -40° C to 40° C operating range
Lataa Mega Speed MS55K-SC esite tästä
Kysy lisätietoja
Takaisin MS-sarjan malleihin
Mega Speed Corporation on kanadalainen suurnopeuskamerajärjestelmien valmistaja
Mega Speed -kamerat ovat laajasti käytössä teollisuusyrityksissä, korkeakouluissa ja tutkimuslaitoksissa eri puolilla maailmaa.


Katso Galleriassamme esimerkkivideoita
Jaso Oy on Mega Speed -suurnopeuskameroiden maahantuoja Suomessa.
Ota yhteyttä niin kerromme lisätietoja ja voimme yhdessä valita juuri teidän tarpeisiinne sopivan kameran.
Sivustolinkit:
Jaso Oy
Tuulimyllyntie 4
14200 Turenki
y-tunnus: 1057298-5
Puhelin: 03 68 78 797
e-mail: jaso@jaso.fi
