Nikon NIS-Elements

Nikon_logo

NIS-Elements software

NIS-Elements on integroitu mikroskooppikuvantamisohjelmisto, joka tarjoaa tehokkaat ja kehittyneet välineet mikroskoopin ohjaamiseen (motorisoitu mikroskooppi), kuvan ottamiseen, analysointiin, dokumentointiin, raportointiin ja arkistointiin.

Ohjelmiston intuitiivinen käyttöliittymä yksinkertaistaa työnkulkua ja nopeuttaa kuvien käsittelyaikaa tarjoten samalla tehokkaita ominaisuuksia, kuten kuvien liittäminen (image stitching), kohteiden laskenta (object counting) ja 3D-kuvien rekonstruoiminen ja luominen kerroskuvista (EDF).

NIS-Elements -ohjelmistoperhe koostuu useammasta eritasoisesta ohjelmistopaketista, joihin on koottu erityyppisten sovellusten vaatimat ominaisuudet.

NIS-Elements packages
osio vaihtuu

NIS-Elements Ar (Advanced Research)

NIS-Elements Ar

NIS-Elements AR is optimized for advanced research applications. It features fully automated acquisition and device control through full six-dimensional image acquisition and analysis.

The software is designed to deliver power and maximize workflow. It handles multi-dimensional imaging flawlessly, with support for capture, display, peripheral device control and data management and analysis of up to six dimensions (X,Y,Z,Lambda(wavelength),T, multi stage points). It also offers sophisticated image processing and visualization features, such as a 5D viewer, automated object counting, intensity measurements over time, image stitching, deconvolution, databasing and Extended Depth of Focus functions.

Youtube-video "Discover Nikon’s Automated Imaging and Analysis Microscopy Software - PCB via inspection":

video Nikon’s Automated Imaging and Analysis Microscopy Software

NIS-Elements Br (Basic Research)

NIS-Elements Br

NIS-Elements BR is suited for standard research applications such as analysis and photodocumentation of fluorescent imaging. It features up to four dimensional acquisition capabilities and advanced device control capabilities.

BR handles multi-dimensional imaging with ease, with support for capture, display, peripheral device control, and data management and analysis of up to four dimensions (for example: X,Y,Z, Lambda (wavelength)). It also provides advanced image processing features, such as automated image count, intensity over time, database capabilities and report generation and Extended Depth of Focus functions.

NIS-Elements D (Documentation)

NIS-Elements D

NIS-Elements Documentation is tailored for facilitating image capture, object measurement and counting, databasing and report generation. Ease of use and simplification of menu options has been emphasized in the design of the package while also displaying a similiar look and feel in NIS-Elements Advanced Research (AR) and Basic Research packages.

The combination of integrated automated intelligence, streamlined workflow, attention to detail and creative design makes NIS-Elements Documentation the perfect package for clinical and industrial applications such as tissue comparison, image archiving and reporting, particle analysis, defect analysis and fiber & textile material analysis.

Core documentation functionality includes manual length and area measurements, large imaging stitching optional modules are available: database for streamlined image filing, retrival and report generation for PDF based reports, Extended Depth of Focus (EDF), which creates an all-in-focus image from a series of Z-axis images, live compare for comparing a live image with a static image or overlay, AutoMeasure for automated object counting using thresholding, feature restrictions and data export, and advanced macro builder for more complex custom programming.

Katso vertailutaulukko eri ohjelmaversioiden ominaisuuksista NIS Elements -esitteestä:

NIS-Elements -esite

osio vaihtuu

Large Image Stitching (AR+BR+D)

NIS-Elements includes impressive large image stitching capabilities. Here's how it works: samples are scanned automatically using a motorized XY stage with auto-focus capability and captured images are stitched into one large image. Special algorithms ensure maximum accuracy, resulting in ultra high-resolution images.

Lue lisää mikroskoopin motorisoinnista täältä

EDF (Extended Depth of Focus) (Option for AR+BR+D)

NIS-Elements Extended Depth of Focus

Extended Depth of Focus (EDF) is an additional software plug-in for NIS-Elements. Thanks to the EDF function, images that have been captured in a different Z-axis can be combined to create an all-in-focus image. Also, it is possible to create stereovision image & 3D surface image for a virtual 3D image.

Image Processing

With NIS-Elements image processing tools, it is possible to modify image display and feature extraction using various filters for, for example, sharpness, smoothing and detection.

Interactive Manual Measurement

NIS-Elements Interactive Manual Measurement

Interactive Measurement (AR+BR+D) allows easy measurement of length and area by drawing lines or an object directly on the image. The results can be attached to the image, and also exported as text or to an Excel spreadsheet. Annotations such as arrows, circles, squares, text are also available display options.

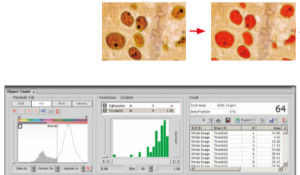

Auto Measurement (Object Counting, AR+BR, option for D)

NIS-Elements Auto Measurement

Auto Measurement (Object Counting, AR+BR, option for D) measures the number of area of objects which are extracted from images by the creation of a binary layer through thresholding using RGB/HIS or intensity values. The results can be listed or exported as text or an excel file. It is possible to save and reuse thresholding parameters.

Filter Particle Analysis

NIS-Elements Filter Particle Analysis

Analysing of cleanliness of filters according to the international standards: ISO 16232, ISO 4406

Grain Size

NIS-Elements Grain Size Analysis

Detection and measurement of grain size according to the standards: ASTM E112-13 (2013), ASTM E1382-97 (2015), ISO 643 (2012), JIS G 0551 (2013), GB/T 6394 (2017)

Cast Iron

NIS-Elements Cast Iron Analysis

Quality control of cast iron according to the standards: ISO 945-1 (2006), ASTM A247-06 (2006), JIS G5502 (2007)

NIS-Elements -esite:

NIS-Elements -esite

Ota yhteyttä lisätietoja varten.

osio vaihtuu

Nikon on johtava optisten instrumenttien valmistaja. Yhtiö on perustettu Japanissa vuonna 1917.

Yli 100-vuotisen toimintansa aikana Nikon on kehittänyt edistyneitä ja tinkimättömän laadukkaita mikroskooppeja ja muita optisia laitteita.

Tänä päivänä Nikon Metrology tarjoaa laajan tuotevalikoiman mikroskopia- ja mittalaitteita.
